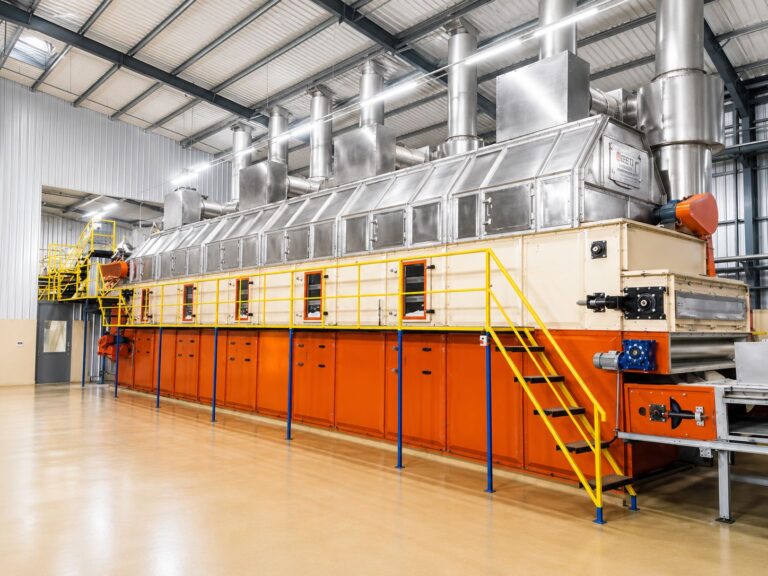

Combination Dryer
(Continuous Tray Type Dryer With Fluidised Bed)
Combination Fluid Bed Dryer for Coconut Processing
The Combination Fluid Bed Dryer is a highly efficient drying solution designed for modern coconut processing plants. It ensures uniform moisture removal while maintaining the natural quality, texture, and aroma of coconut products. Ideal for continuous operations, this system enhances productivity, energy efficiency, and product consistency across a wide range of coconut applications.
What is a Combination Fluid Bed Dryer?
A Combination Fluid Bed Dryer is an advanced industrial drying system designed for efficient and uniform drying of coconut-based products such as powders, flakes, chips, and granules. It integrates multi-stage drying with controlled airflow and temperature to ensure consistent moisture removal while preserving product quality, texture, and nutritional value.
This technology is widely used in coconut processing plants for high-capacity and continuous drying operations.
Working Principle
The Combination Fluid Bed Dryer operates on the principle of fluidization, where hot air is passed through a perforated bed of coconut particles, causing them to behave like a fluid. This ensures maximum contact between air and product, resulting in rapid and uniform drying.
Wet coconut material is fed into the drying chamber, where controlled hot air lifts and suspends the particles. This fluidized motion enhances heat and mass transfer, allowing moisture to evaporate quickly and evenly.
The combination design enables multi-stage drying and cooling, ensuring optimal moisture levels and product stability.
Applications in Coconut Processing
The Combination Fluid Bed Dryer is ideal for drying a wide range of coconut products, including:
- High Fat Desiccated Coconut Powder (HFDC)
- Low Fat Desiccated Coconut Powder (LFDC)
Various Dryer Models of Different Capacities Available :-
| Model Name | Output Capacity | Material |
|---|---|---|
| 4 Module | 300 – 375 Kgs/Hr | Dried DC Powder |
| 5 Module | 400 – 460 Kgs/Hr | Dried DC Powder |
| 6 Module | 500 – 550 Kgs/Hr | Dried DC Powder |
| 7 Module | 575 – 625 Kgs/Hr | Dried DC Powder |
| 8 Module | 675 – 725 Kgs/Hr | Dried DC Powder |
| 9 Module | 750 – 800 Kgs/Hr | Dried DC Powder |
| 10 Module | 840 – 890 Kgs/Hr | Dried DC Powder |
| 12 Module | 980 – 1025 Kgs/Hr | Dried DC Powder |
| 14 Module | 1100 – 1200 Kgs/Hr | Dried DC Powder |
Advantages
- Fast and uniform drying of coconut particles
- Retains natural aroma, color, and nutritional properties
- Prevents overheating and product degradation
- High drying efficiency with reduced energy consumption
- Continuous operation for high production capacity
- Minimal product loss and dust formation
Key Features
- Superior control over final product moisture and quality
- Stainless steel construction for hygienic food-grade processing
- Multi-stage drying and cooling zones
- Uniform airflow distribution for consistent drying
- Energy-efficient hot air circulation system
- Variable speed control for process flexibility
- Insulated drying chamber for heat retention
- Easy operation, cleaning, and maintenance
- Suitable for continuous large-scale coconut processing
Main Components
- Feed Conveyor System
- Fluidization Chamber
- Perforated Bed Plate
- Hot Air Generator / Heater
- Blower & Air Distribution System
- Dust Collection System (Optional)
- Discharge Mechanism
- Control Panel with Automation
Critical Drying Parameters
- Inlet Air Temperature
- Air Velocity & Flow Rate
- Bed Depth
- Moisture Content (Input & Output)
- Residence Time
- Particle Size Distribution
Why Choose GENEX for Coconut Drying Solutions?
- Expertise in complete coconut processing plant solutions
- Customized dryer design based on product requirement
- Energy-efficient and cost-effective systems
- Proven installations across global coconut industries
- Compliance with international food processing standards
Get Combination Dryer for Desiccated Coconut – Price & Consultation
Planning a Desiccated Coconut Powder Plant?
Our experts will help you with:
- Capacity planning
- Dryer selection
- Plant layout & design
- Technical specifications
- Turnkey project execution
Contact us today for Combination Dryer pricing and coconut processing consultation
