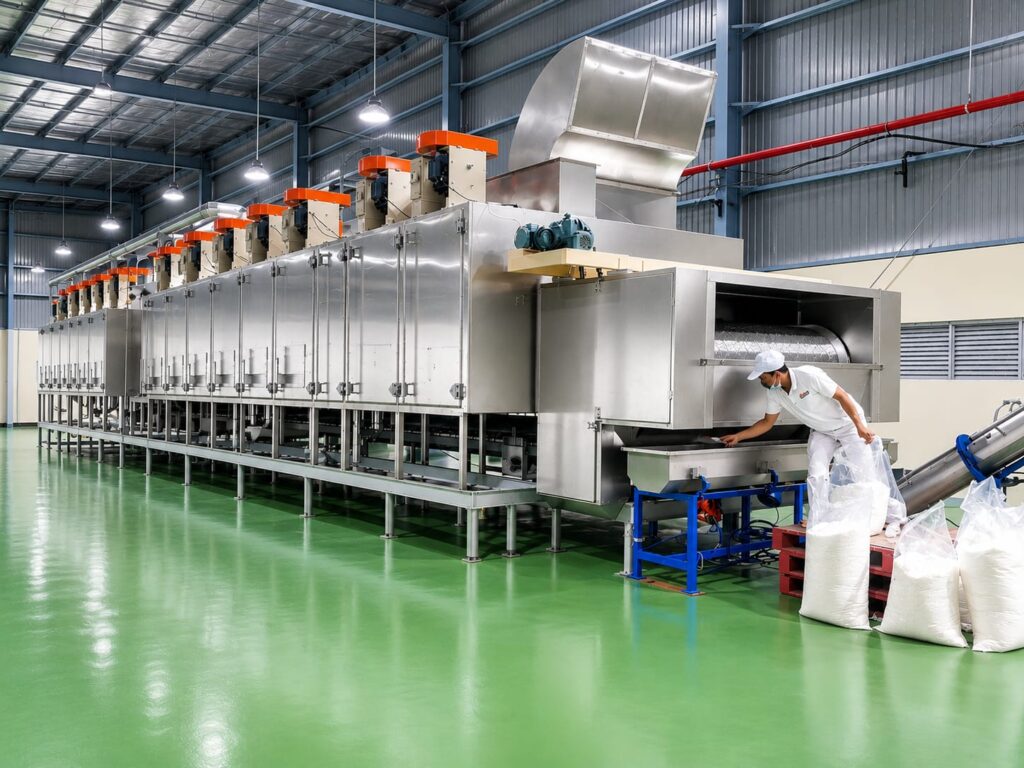

Band Dryer (Apron Type Dryer)

Industrial Band Dryer for Desiccated Coconut (High Fat)

GTI Band Dryer for High Fat Desiccated Coconut Powder is a specially engineered continuous drying system designed to handle oil-rich coconut gratings while maintaining product quality, whiteness, flavor, and low moisture levels.

As a leading Band Dryer Manufacturer for Coconut Processing Plants, we deliver energy-efficient, hygienic, and export-grade drying solutions for desiccated coconut powder production.

What is a Band Dryer for Desiccated Coconut?

A Band Dryer (Belt Dryer) for coconut is a multi-stage continuous drying system where fresh coconut gratings are uniformly spread on a conveyor belt and passed through controlled drying zones.

This process ensures:

  • Controlled moisture reduction to a maximum of 3%
  • Retention of natural coconut oil (high fat content)
  • Uniform drying without burning or discoloration
  • Hygienic and contamination-free processing

Ideal for High Fat Desiccated Coconut Powder (HFDCP) production.Controlled moisture reduction to a maximum of 3%

Working Principle of Coconut Band Dryer

The GENEX Coconut Band Dryer operates on a precision-controlled drying process:

  1. Fresh coconut gratings are evenly fed onto the stainless steel belt
  2. Product passes through multi-zone drying chambers
  3. Controlled hot air is circulated uniformly across the bed
  4. Moisture evaporates gradually without affecting oil content
  5. Dried coconut is discharged continuously with consistent quality

Ensures uniform drying, low moisture, and long shelf life

Applications in Coconut Processing Plants

This system is ideal for:

  • High Fat Desiccated Coconut Powder (Fine / Medium / Coarse)
  • Low Fat Desiccated Coconut
  • Coconut Chips
  • Coconut Threads / Flakes
  • Copra Drying
  • Virgin Coconut Oil (VCO) Pre-processing

Suitable for complete turnkey coconut processing plants

Band Dryer

Advantages of Band Dryer for Coconut

Optimized for High Fat Content

Special airflow design prevents oil leakage, sticking, and product degradation

Uniform & Gentle Drying

Multi-zone drying ensures consistent moisture removal without burning

Energy Efficient Operation

Advanced heat circulation reduces fuel consumption per kg of product

Hygienic Food-Grade Design

SS304 / SS316 construction ensures export-quality production standards

Continuous Production

Designed for 24×7 operation with high throughput

Consistent Product Quality

Maintains:

  • White color
  • Natural aroma
  • High oil retention
  • Low moisture

Key Features of GENEX Coconut Band Dryer

  • Multi-stage temperature control zones
  • Uniform airflow distribution system
  • Adjustable belt speed (residence time control)
  • Food-grade SS construction (SS304 / SS316)
  • PLC / SCADA automation options
  • Low heat loss insulated chamber
  • Dust-free and hygienic drying environment
  • Custom feeding & discharge systems

Design & Construction Options

  • SS304 / SS316 full hygienic design
  • Hot air / steam / thermic fluid heating systems
  • Multi-pass belt configuration (space optimization)
  • Cyclone, scrubber & filtration systems
  • Heat recovery systems for energy savings
  • CIP (Clean-in-Place) options

Typical Technical Specifications

  • Capacity: 250 kg/hr to 2000+ kg/hr
  • Input Moisture: ~50–55%
  • Output Moisture: 3–5%
  • Operation: Continuous belt drying
  • Heating: Steam / Thermic Fluid / Hot Air
  • Control: PLC / SCADA / Semi-automatic
  • Material: SS304 / SS316

Why Choose GENEX for Coconut Drying Systems?

  • 40+ years of engineering expertise
  • Specialized in coconut processing machinery & dryers
  • Proven installations across Asia, Africa & global markets
  • Custom-designed systems for HFDCP production
  • Strong focus on energy efficiency & product quality
  • Complete turnkey coconut processing plant solutions

Complete Coconut Processing Integration

We offer full integration with:

  • Coconut Dehusking & Deshelling
  • Paring & Washing Systems
  • Blanching Systems
  • Grinding / Grating Machines
  • Band / Fluid Bed Dryers
  • Cooling & Packing Systems

One-stop solution for desiccated coconut plants

Get Band Dryer for Desiccated Coconut – Price & Consultation

Planning a Desiccated Coconut Powder Plant?

Our experts will help you with:

  • Capacity planning
  • Dryer selection
  • Plant layout & design
  • Technical specifications
  • Turnkey project execution

Contact us today for Band Dryer pricing and coconut processing consultation
